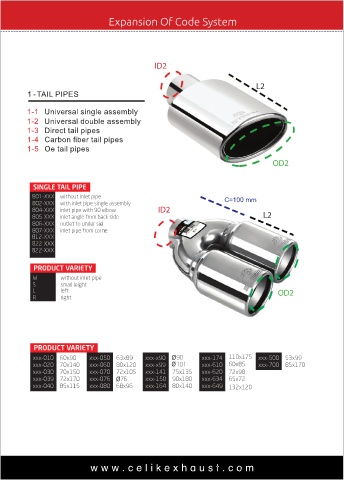

Expans on Of Code System

1 - TAIL PIPES

1-1 Un versal s ngle assembly
1-2 Un versal double assembly
1-3 D rect ta l p pes
1-4 Carbon fiber ta l p pes
1-5 Oe ta l p pes

SINGLE TAIL PIPE
801-XXX without inlet pipe C=100 mm
802-XXX with inlet pipe single assembly
804-XXX inlet pipe with 90 elbow
805-XXX inlet angle from back side
806-XXX outlet to under side
807-XXX inlet pipe from corne
r
812-XXX
822-XXX
822-XXX

PRODUCT VARIETY

W without inlet pipe
S small leight
L left
R right

PRODUCT VARIETY
xxx-010 60x90 xxx-050 63x89 xxx-x90 Ø xxx-174 110x175 xxx-500 53x99
xxx-020 70x140 xxx-060 80x120 xxx-x99 Ø xxx-610 60x85 xxx-700 85x170
xxx-030 70x150 xxx-070 72x105 xxx-141 75x135 xxx-620 72x98
xxx-039 72x170 xxx-076 Ø xxx-150 90x180 xxx-634 65x72
xxx-040 85x115 xxx-080 68x96 xxx-164 80x140 xxx-649 132x120
