Un versal mufflers

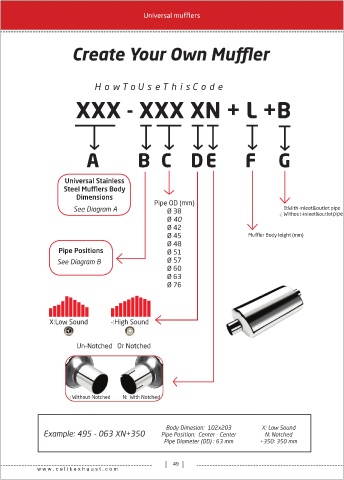

                          Create Your Own Muffler






                                  H o w T o U s e T h i s C o d e


                            XXX - XXX XN + L +B










                               A                 B C                DE                 F  G



                        Universal Stainless
                       Steel Mufflers Body
                            Dimensions
                                                       Pipe OD (mm)
                                                                                                     B:With-inleet&outlet pipe
                           See Diagram A                    Ø 38                                   -: Without-inleet&outlet  pipe
                                                            Ø 40
                                                            Ø 42
                                                            Ø 45                        Muffler Body leight (mm)
                                                            Ø 48
                     Pipe Positions                         Ø 51
                     See Diagram B                          Ø 57
                                                            Ø 60
                                                            Ø 63
                                                            Ø 76






                  X:Low Sound           -:High Sound




                            Un-Notched   Or Notched










                                            N:
                         -: Without-Notched                   With Notched



                                                           Body Dimesion:  102x203           X: Low Sound
                Example: 495 - 063 XN+350                 Pipe Position:  Center - Center     N: Notched
                                                           Pipe Diameter (OD) : 63 mm       +350: 350 mm



                                                              49
