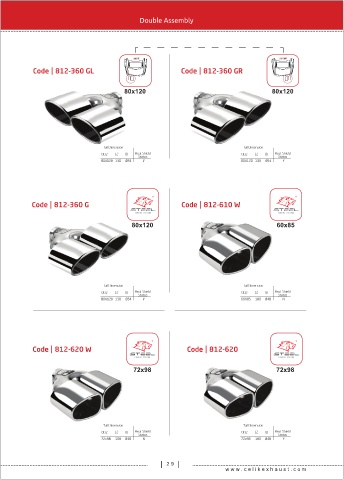

Double Assembly

LEFT RIGHT
RIGHT
LEFT
Code 812-360 GL Code 812-360 GR

80x120 80x120

Tail Dimension Tail Dimension
OD2 L2 ID Heat Shield OD2 L2 ID Heat Shield
Status Status
80X120 130 Ø54 Y 80X120 130 Ø54 Y

Code 812-360 G Code 812-610 W

80x120 60x85

Tail Dimension Tail Dimension
OD2 L2 ID Heat Shield OD2 L2 ID Heat Shield
Status Status
80X120 130 Ø54 Y 60X85 100 Ø48 N

Code 812-620 W Code 812-620

72x98 72x98

Tail Dimension Tail Dimension
OD2 L2 ID Heat Shield OD2 L2 ID Heat Shield
Status Status
72x98 100 Ø48 N 72x98 100 Ø48 Y

2 9
