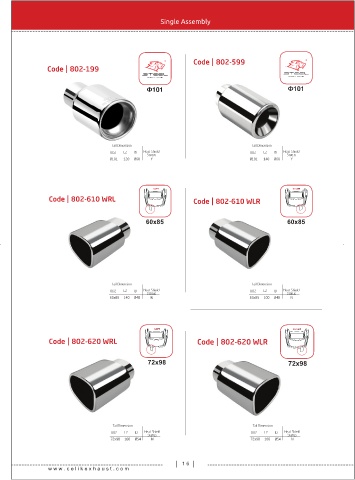

S ngle Assembly

Code 802-599
Code 802-199

Tail Dimension Tail Dimension
OD2 L2 ID Heat Shield OD2 L2 ID Heat Shield
Status Status
Ø101 120 Ø60 Y Ø101 140 Ø60 Y

RIGHT
LEFT RIGHT
LEFT
Code 802-610 WRL Code 802-610 WLR

60x85 60x85

Tail Dimension Tail Dimension
OD2 L2 ID Heat Shield OD2 L2 ID Heat Shield
Status Status
60x85 140 Ø48 N 60x85 100 Ø48 N

LEFT RIGHT
LEFT
RIGHT
Code 802-620 WRL Code 802-620 WLR

72x98 72x98

Tail Dimension Tail Dimension
OD2 L2 ID Heat Shield OD2 L2 ID Heat Shield
Status Status
72x98 100 Ø54 N 72x98 100 Ø54 N

1 6
